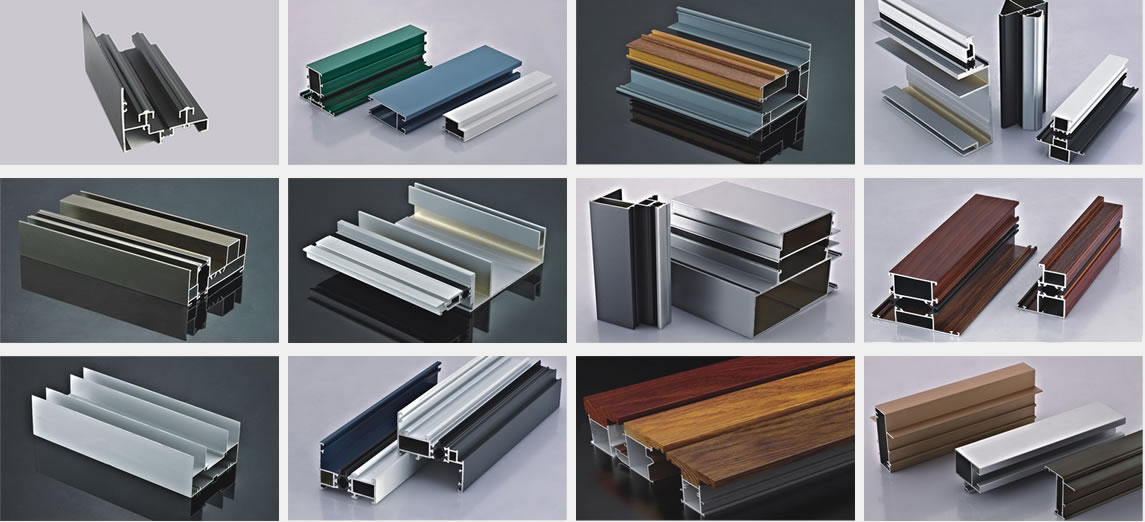

Architectural & Industrial Aluminium Profile
At present, Orient Aluminium provides various finish for option, such as Mill / Anodizing (oxidation) / Sand blasting / Powder Coating / Electrophoresis / PVDF Coating / Wooden color etc. There are 7 major categories and 5000 varieties of architectural profiles and industrial profiles.
.jpg)

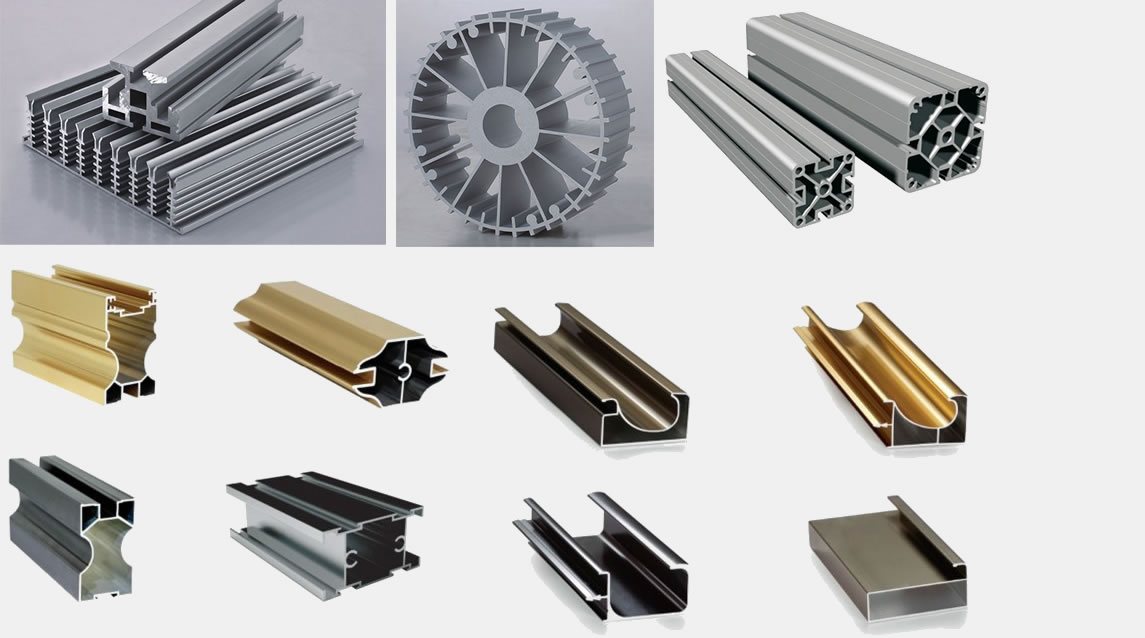

Orient products are widely used to every fields of people’s life.
1) - for window and door frames, wardrobe cabinet sliding doors, kitchen, building curtain glass walls;
2) - for fencing, rail, dock and frame;
3) - for solar panel frames, solar mounting / roofing brackets;
4) - for industry assembly lines equipment;
5) - for heatsinks, LED lighting;
7) - other by custom design size and dimension.
.jpg)

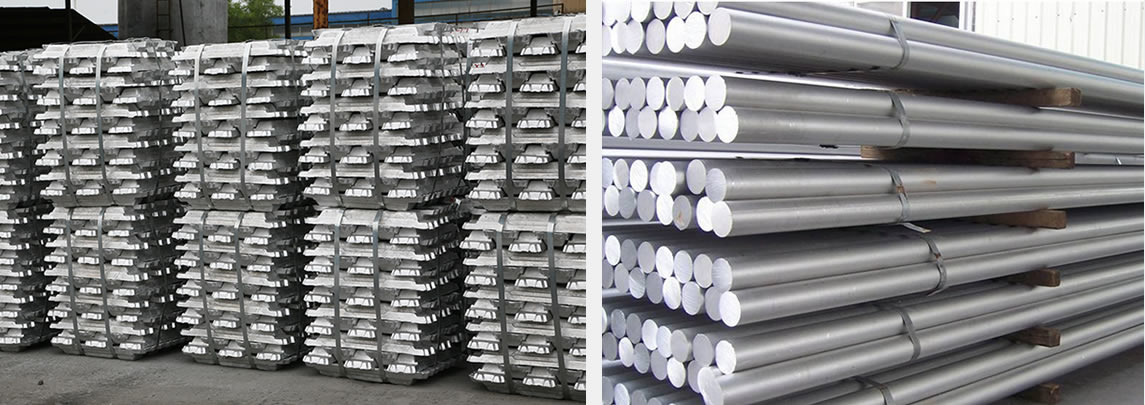

Pure Raw Material
Aluminium Alloy: 6063, 6061, 6005, 6060 Thermal Treatment: T5, T6
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
|
Unit |
Total |
||||||||||
|
6063 |
0.2-0.6 |
<0.35 |
<0.1 |
<0.1 |
0.45-0.9 |
<0.1 |
<0.1 |
<0.1 |
<0.05 |
<0.15 |
Surplus |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
<0.15 |
0.8-1.2 |
0.04-0.35 |
<0.25 |
<0.15 |
<0.05 |
<0.15 |
Surplus |
|
6005 |
0.6-0.9 |
<0.35 |
<0.1 |
<0.1 |
0.4-0.9 |
0.1 |
<0.1 |
<0.1 |
<0.05 |
<0.15 |
Surplus |
|
6060 |
0.3-0.6 |
0.35-0.6 |
0.1-0.3 |
<0.1 |
<0.1 |
<0.15 |
<0.05 |
<0.1 |
<0.05 |
<0.15 |
Surplus |

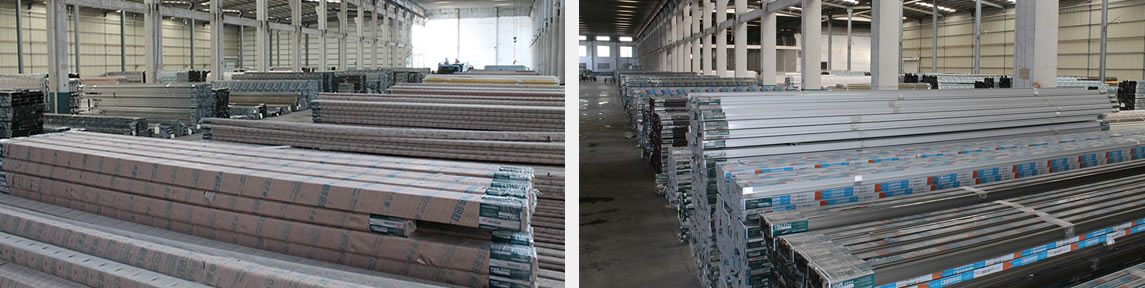

Packing & Delivery
Standard Packing: Each profile pasted by protection plastic film, a bundle profiles wrapped up by compound paper
Delivery Details: 15-20 days after deposit payment received
Certificates
Orient Aluminium has passed ISO9001: 2008 , ISO14001: 2004 , ISO10012 certificate and has been certified AA grade standardize corporate. The products obtain Certification of China Energy Efficient Products. It is the membership of China Construction Metal Structure Association. The products are sold throughout the China and exported to many countries.

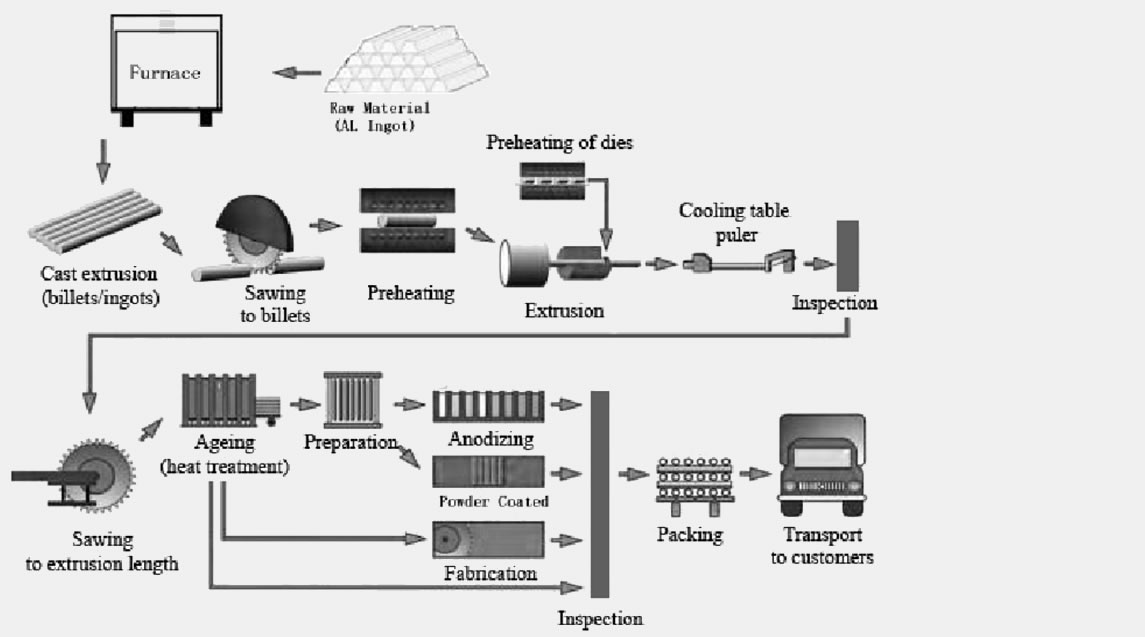

Production Procedure

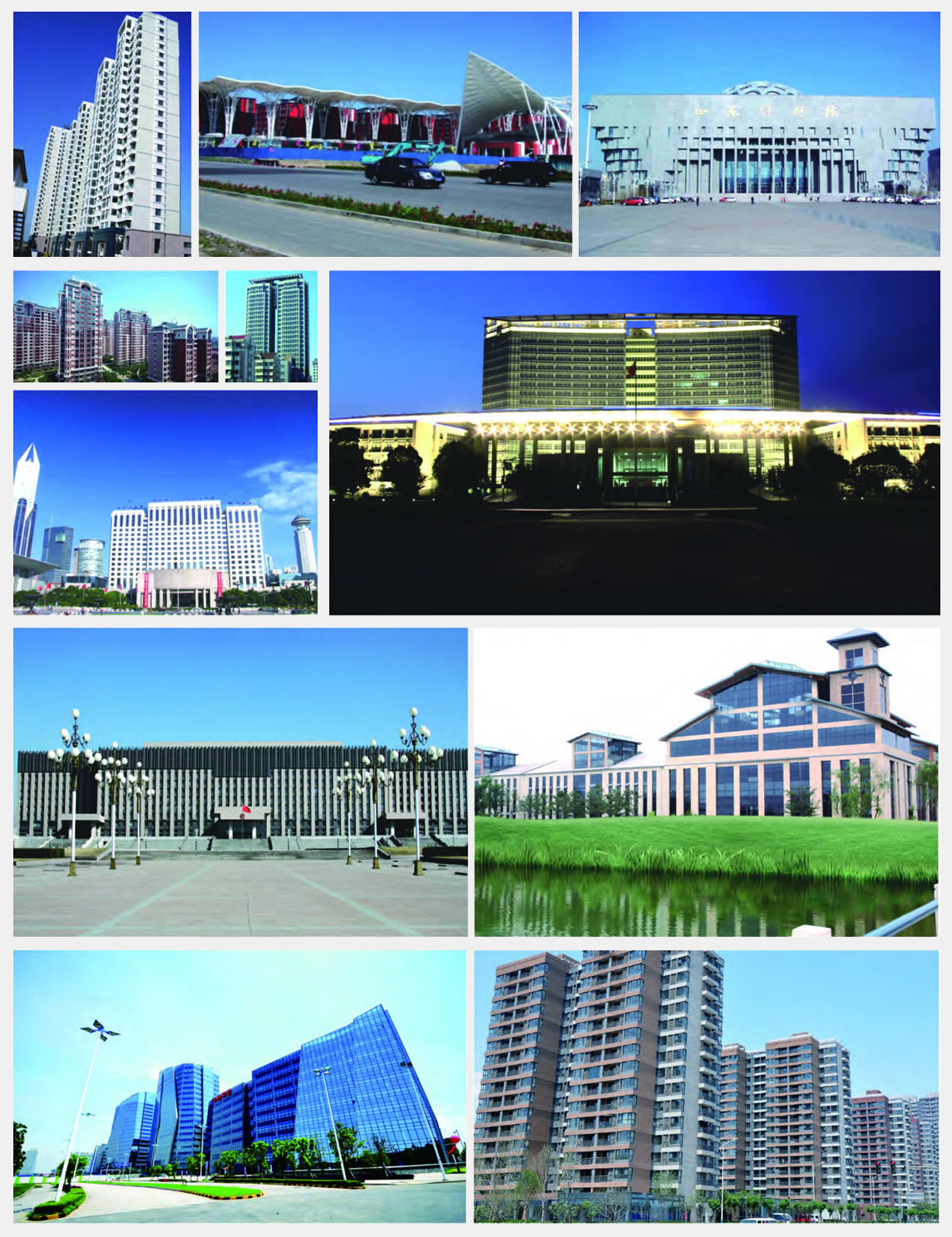

Application Projects
Taking advantage of the latest equipment and highest technology, our products are complied with international standards. With the features of light weight, high intensity, anti-corrosion and not easy to deformation, our products are widely used in villa, apartment, hotel, hall, stadium, theaters, libraries and other buildings.
